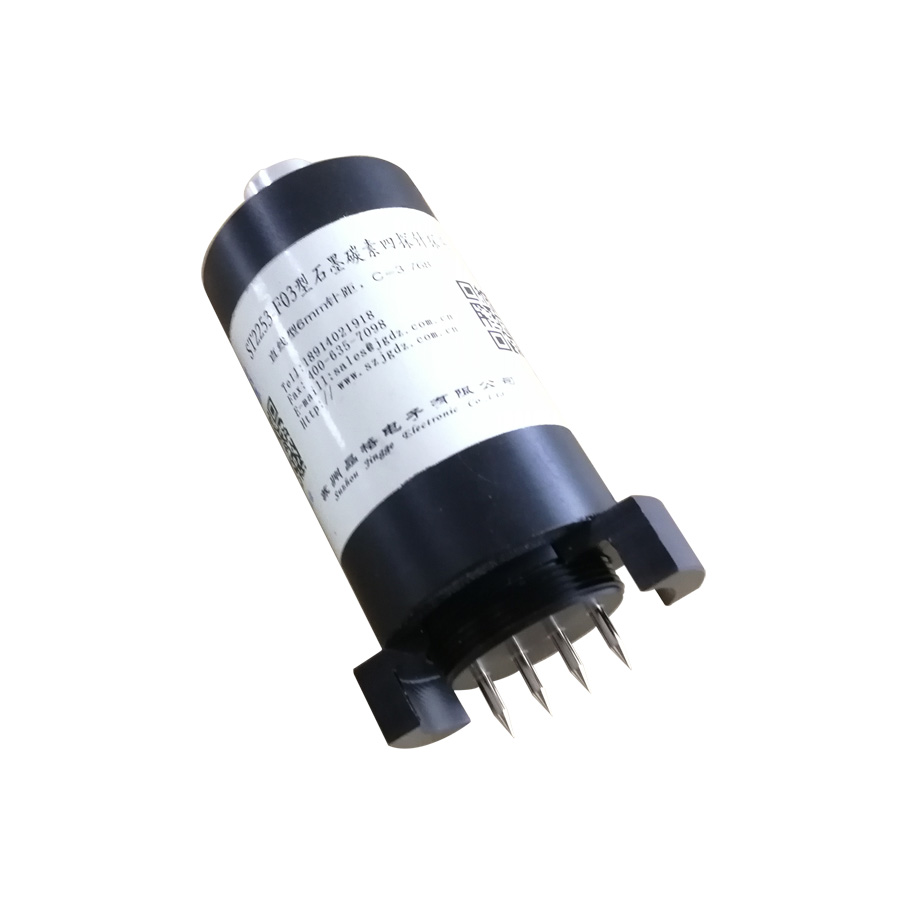

ST2253-F03 Handheld Steel Needle Linear Four Probe for Measuring Graphite Bar
ST2253-F03 Handheld Steel Needle Linear Four Probe for Measuring Graphite Bar
ST2253-F03 Handheld Steel Needle Linear Four Probe for Measuring Graphite Bar
Category: ST2253-F03 Graphite Carbon Four-point Probe
AddDate: 2022/12/2 14:22:33
Hits: 4357
Detail

 I. Overview of functional and structural features

ST2253-F03 Steel Needle Handheld Graphite Carbon Special Four Probe

Basic functions: ST2558B-F03A hand-held steel needle linear four probe, steel nickel plated alloy probe, equipped with four probe instrument and test bench, is used to test the conductivity of semiconductor graphite, carbon, silicon, germanium and other block bar materials.

Basic composition: the complete set of probe consists of probe, probe base, hand-held jacket, test bench connection unit, instrument connection cable, etc.

Matching and compatibility: This probe is compatible with all four probe instruments and four probe test benches of our company. The main models in the table below are compatible with our test benches and four probe instruments of most other manufacturers.

List of applicable models and names of ST2558B-F03A hand-held steel needle linear four probe


Model and name of four probe instrument

Model

Name

ST2258C

Multi functional digital four probe tester
ST2253Digital four probe tester

ST2263

Double electric measuring digital four probe tester

M-3

Hand held four probe tester
 ……
Model of other manufacturers
 2400;2450;6500
Keithley

RST-4/8

Digital four probe tester

SDY-4

Digital four probe tester

 II. Main Technical Parameters and Description

1.  It can measure sheet, block or bar. Minimum sample size 10mm × 10mm, the maximum plane size and thickness are determined by the equipped test bench, and the hand-held probe mode is not limited.

1.1 Probe spacing: 6+6+6mm in straight line.

1.2 Mechanical displacement rate of probe: ± 0.5%.

1.3 Probe: nickel plated alloy, Φ 3.0mm。

1.4 Pressure: 0~1000g adjustable, and the rated pressure is about 600g.

 III. Usage

Please refer to the manual of graphite carbon testing instrument for instrument operation.
