ST2558B-F02 Resistivity/Square Resistance Probe for Coating on Foil
ST2558B-F02 Resistivity/Square Resistance Probe for Coating on Foil
ST2558B-F02 Resistivity/Square Resistance Probe for Coating on Foil
Category: ST2558B-F02 Foil Coating two-point probe
AddDate: 2022/12/2 14:53:40
Hits: 4645
Detail

 I. Overview of functional and structural features

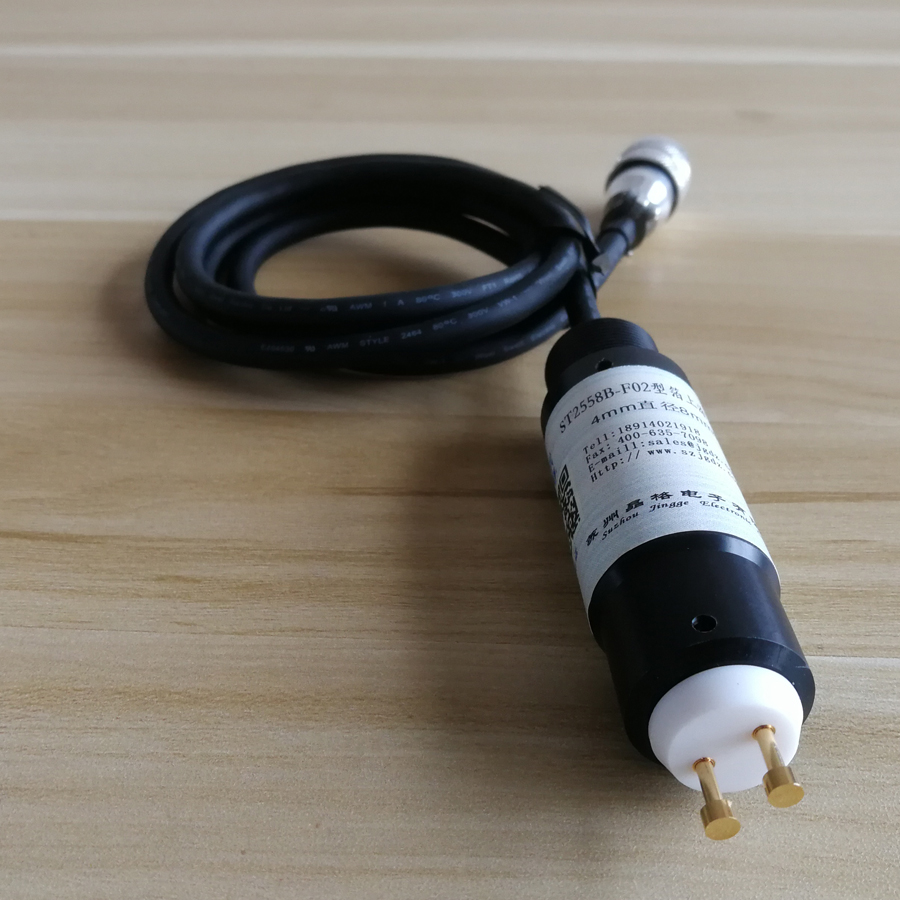

ST2558B-F02 Special probe for coated electrode piece on foil

ST2558B-F02 Test Diagram of Electrode Piece Coated on Foil

Basic functions: ST2558B-F02 foil coating resistivity/square resistance probe, equipped with cylindrical flat head alloy probe, four probe instrument and test bench, is used to test the coating resistivity/square resistance of metal foil.

Basic composition: the complete set of probe consists of probe, probe base, hand-held jacket, test bench connection unit, instrument connection cable, etc.

Matching and compatibility: This probe is compatible with all four probe instruments and four probe test benches of our company. The main models in the table below are compatible with our test benches and four probe instruments of most other manufacturers.

List of models and names of applicable products of ST2558B-F02 foil coating resistivity/square resistance probe

Test bench model name
Model and name of four probe instrument
Model
Name
Model
Name
SZT-C
Fast constant pressure four probe test bench
ST2258C
Multi functional digital four probe tester
ST2253Digital four probe tester


ST2263
Double electric measuring digital four probe tester


M-3
Hand held four probe tester


……
Model of other manufacturers


2400;2450;6500
Keithley


RST-4/8
Digital four probe tester


SDY-4
Digital four probe tester

 II. Main Technical Parameters and Description

1. It can measure sheet, block or bar. Minimum sample size 4mm × 10mm, the maximum plane size and thickness are determined by the equipped test bench, and the hand-held probe mode is not limited.

2.1 Probe spacing: straight two needle distribution, spacing 10.0mm.

2.2 Mechanical displacement rate of probe: ± 0.5%.

2.3 Probe: gold plated phosphor copper alloy, Φ 4.0mm。

2.4 Pressure: 0~1000g adjustable, and the rated pressure is about 500g.

3. The probe can be quickly disassembled and replaced, which is convenient for the production line to use frequently.

 III. Usage

Please refer to the usage of each supporting test bench.
